Sack gabions consist of a single mesh panel and are supplied with steel reinforcing wires inserted during the manufacturing process. The wire used in the manufacture of the sack gabion is heavily zinc coated soft temper steel.
Sack gabions are filled with rock at the project site to form flexible, permeable, monolithic structures used for emergency and river training works where local conditions require fast installation or where the water does not allow for easy access to the site and where underwater installation is necessary.

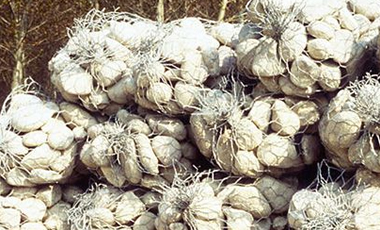

The following are the model pictures of installing:
Gabion cage is a columniform bag woven by double hexagonal nettings, which is to the standard of ASTM A975-97, and there is a piece of thick wire for belding to close the opening.
When it is used, its filled with selected stones to make a stable building material with good water permeability to prevent or control flood.
We control and check the producing procedure sincerely and all of the wires are sincerely to ASTM A975-97, i.e tensive strength is above 75000psi 515Mpa ASTM A641/A641M-03.
Size of Gabion
| Length of cage (m) | Diameter of cage (m) | V (m3) |
| 1.8 | 0.6 | 0.54 |
| 2.7 | 0.6 | 0.8 |
| 1.8 | 0.9 | 1.2 |
| 2.7 | 0.9 | 1.8 |
Quanlity Standards:BS 443-1982 ASTM, QQ-W461H 1978 , 5-CLASS3, Afnor NF A 91-131 CLASS C, DIN 1548-70 NBR 8964-85,
